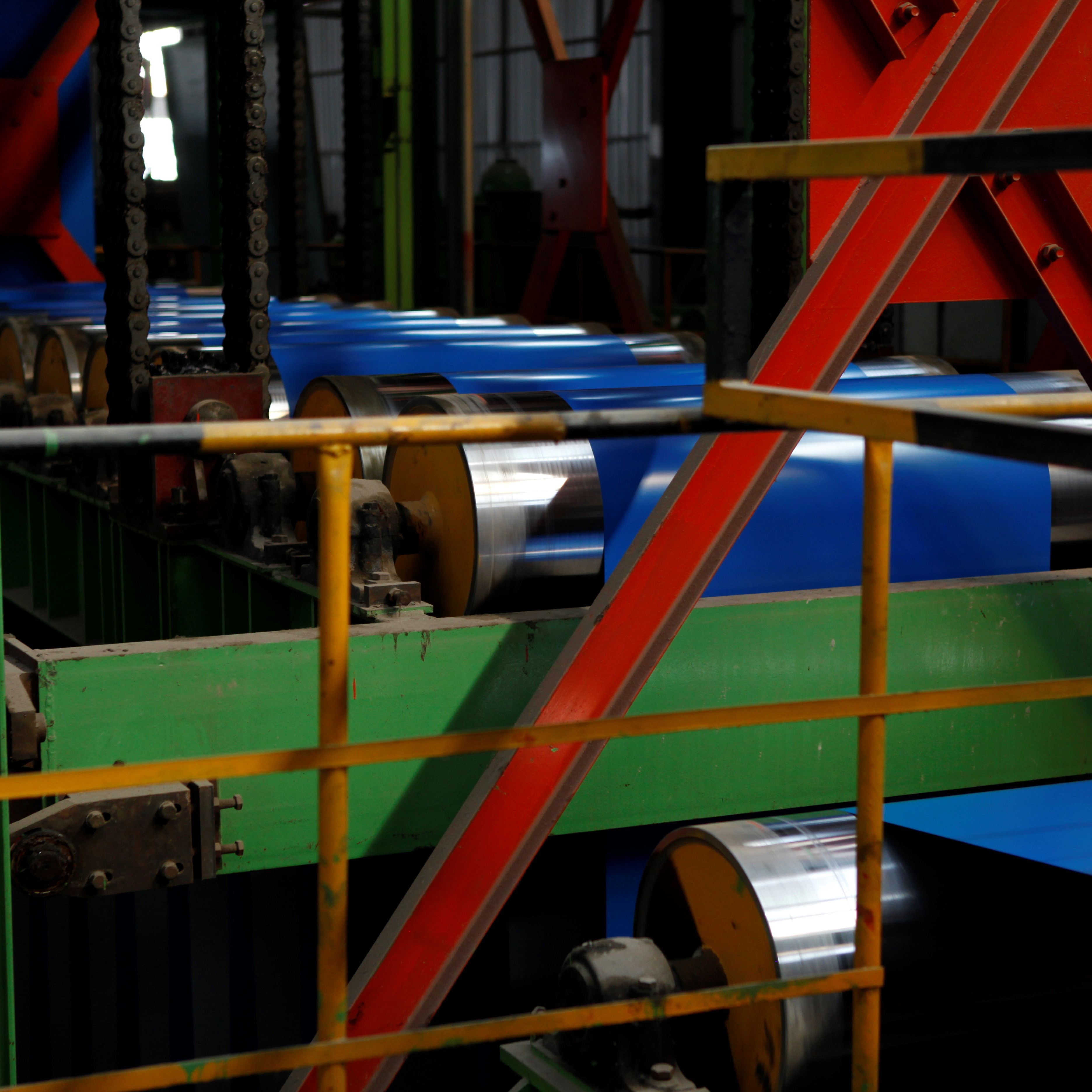

steel strip color coating line(one coating, two (or three)coating
two baking
JJRS assembles excellent technology research team, high qualified
management personnel, perfect management system and powerful
engineering design and complete project capability. As an
integrated solution provider, we are willing to provide iron and
steel enterprises of all over the world with highest quality
products and services, from general engineering contracting,
integrated production lines, to single equipment, even components
and spare parts.
JJRS owns a stable user group both at home and abroad; all the
contracted engineering projects are highly praised by end users
bringing us fruitful success and good reputation. We are promoting
actively metallurgical equipments to international market,
establishing good trade cooperation relationship with several
multinational companies. Our products are exported to Indonesia,
Uzbekistan, Russia, Southeast Asia, Middle Asia and other countries
and regions.
Color coated steel plate is also known as Color Coated Plate or
Colored Plate. It normally refers to the product of cold rolled
steel strip or galvanized steel strip, whose surface is pretreated,
then coated (or roller coated) a layer of coating with defined
thickness or organic thin film. Then it becomes finished color
coated after dried up and shaped.
Because of its high corrosion resistance, colored coating of steel
strip could be used at many conditions. The good machining
performance makes it easy for subsequent process and avoids the
environment pollution. So this line could protect environment. With
various paint types, colored strip has excellent decorative with
novel and bright colors. With above advantages, colored strip is
broadly applicable to the industries of civil construction,
household appliances, light industry, transportation, etc. It
becomes a kind of perfect composite material with vast potential
for future development.
Tensile strength: Max550N/mm2
Yield strength: Max350N/mm2
Camber: <25mm/10m steel strip length Edge wave: <40mm
Edge part: flaw <1mm, length within 10m are less than 10, no
furl
Steel strip temperature: ≤60℃
Product usage: roofing
Raw material standard: GB/T 2518-2004
Product quality standard: GB/T 12754-2006 (Paint index applies the
national standard)
Basic Technical Parameters| Material: | galvanized steel strip or common steel steel strip |
| Line speed: | whole line speed 40-150m/min |
| End product weight: | 3,500-15,000kg/coil |
| Outer Dia. of coil: | φ1350mm |
| Inner Dia. of coil: | φ508 |
| Thickness of steel strip: | 0.18-0.5mm |
| Width of steel strip: | 914~1,250mm |
| Energy: | produce gas/natural gas/blast furnace gas,steam and electricity |
| Thickness of color plate: | thickness of the frontsingle layer dry film can be adjusted between
10-20μm |
| Color plate quality: | comply with the requirement ofnational standard GB/T12754-2006 |
| Coiling staggered layer: | one side≤1.0 mm |
| thickness of the reverse single layer dry film can beadjusted
between 5-10μm |
