    1.0-3.0mm 450mm Continuous Galvanizing Line Process For Steel Industry

    CGL Unit for steel industry

    1.0~3.0mm*450~1250mm (metal ss)

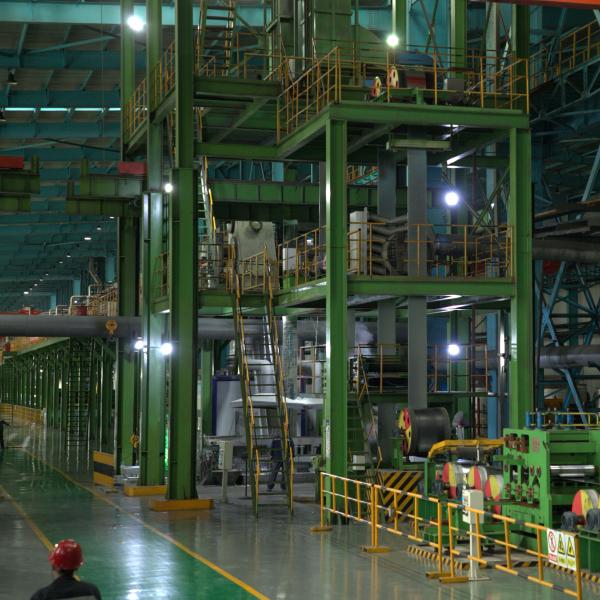

    This production line is galvanizing line of cold rolled steel. It mainly includes uncoiling section, welding platform, entry looper, annealing furnace, zinc pot, air knife system, cooling system after galvanizing, tension leveler, passivation section, exit looper, reserve postion for electrostatic oiler and some other equipments. The production line's product position is architectural material, roof, panels, etc. Its function inlcudes annealing, galvanizing, finishing, straighterning, pre-painting oil. etc.


    All equipments of this line are designed and confirmed through modern technology. They are totally matched with each other. So, it could guarantee continuous and stable operation, also the excellent galvanizing and annealing steel strip.The preheating section of annealing furnace USES no oxidation burner for heating. The flug gas centrally preheat the combustion air in order to save fuel. By controlling the combustion mode of the burner it can adjust the atmosphere of the furnace without oxidation to ensure strip steel


    Steel strip thickness: 1.0~3.0mm
    Steel strip width:450-1250mm
    Steel coil weight: Max6t
    Steel coil inner dia: Φ610mm,Φ508mm
    Steel coil outer dia: Φ1250mm,Φ1700mm
    Entry section:60m/min(Max)
    Exit section:60m/min(Max)
    Process section: 40m/min;
    Threading speed: Entry20 m/min
    Exit: 20 m/min
    Unit transmission direction: right transmission(right side of strip operation direction)


    Namecgl unit for steel industry1.0~3.0mm 450mm
    ApplicationBuilding Material,roof, panel
    Width450mm-1250mm
    Thickness0.15mm-2.5mm
    Capacity240,000t/year
    Zinc Coating

    30-300g/m2


    Componentpayoff reel, tensinon leveler,entry looper etc.

    Keywordsteel Continuous Galvanizing Line
    TypeContinuous
    ProcessHot dip
    Coil Materialsteel metal ss cs
    MaterialHot rolled coil, cold rolled coil
