    Galvanized Sheet Colour Coating Line Manufacturers Metal Coating Line 0.16-0.6×1400MM

    Ask Lasest Price
    Brand Name : JJRS
    Payment Terms : L/C, T/T
    Supply Ability : 10-12 set/year
    Delivery Time : 7~10 months
    Price : USD$1,000,000~USD10,000,000
    • Product Details
    • Company Profile

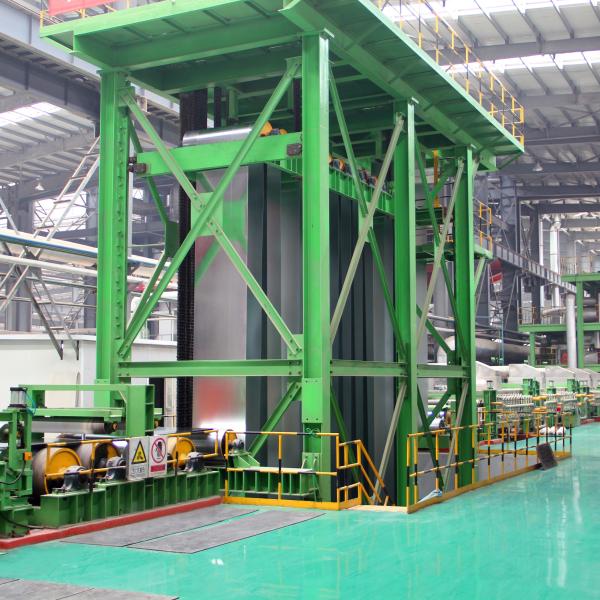

    Galvanized Sheet Colour Coating Line Manufacturers Metal Coating Line 0.16-0.6×1400MM

    30000 T/Y Color Coating Line equipment with technical supports

    Steel Strip Color Coating Line / Material Galvanized sheet

    0.16-0.6×1400MM Color coating production line


    JJRS is professional on turn-key projects, from general planning, designing, to manufacturing, installing, commissioning and servicing. Besides, our business also covers single equipment’s designing, manufacturing and installing, as well as electric transmission, control system and spare parts. All basing on these supporting businesses, we mark out a developing strategy that taking metal strip intensive processing and color coating production lines as main, and the associated industry products as supplement.


    Color coating line roll coater machine is an integrated product of mechanical and electrical control. The main body of the equipment can be configured with vertical type or horizontal type according to process requirement, also can be configured with two rolls or three rolls coating heads. Equipped with a pressure sensor to control the coating layer effectively.


    Application Scope of Coaters for Color Coating Line


    Material: Galvanized Sheet

    Material Thickness: 0.16-0.6mm

    Material Width: 1400mm

    Line Speed: ≤210m/min


    Basic Parameter
    Raw Steel typeGalvanized (Aluminium zinc) steel coil
    Coil thickness:0,15-0.6mm
    Coil width:1000-1250mm
    Coil ID:Ø 508mmmm/Φ610mm
    Coil weight:Max5t
    Coil ID:Ø 508mm/Φ610mm
    Coil weight:Max 5t

    1CPC centering machine V#1
    22# steering roll2
    3Finish Coating Room1
    4Finish roller Coater1
    5Finish curing oven1
    6Incinerator system1
    7Cold air blow device III#1
    8Hot air blow device III#1
    9Tension bridle roll V#1

    PGalvanized Sheet Colour Coating Line Manufacturers Metal Coating Line 0.16-0.6×1400MMGalvanized Sheet Colour Coating Line Manufacturers Metal Coating Line 0.16-0.6×1400MMGalvanized Sheet Colour Coating Line Manufacturers Metal Coating Line 0.16-0.6×1400MMGalvanized Sheet Colour Coating Line Manufacturers Metal Coating Line 0.16-0.6×1400MM
